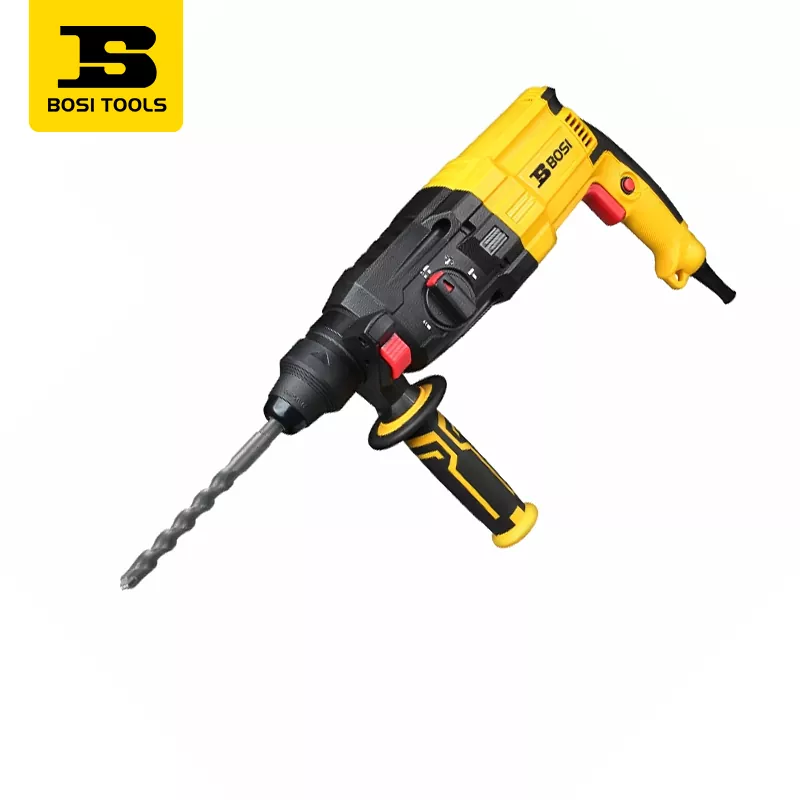

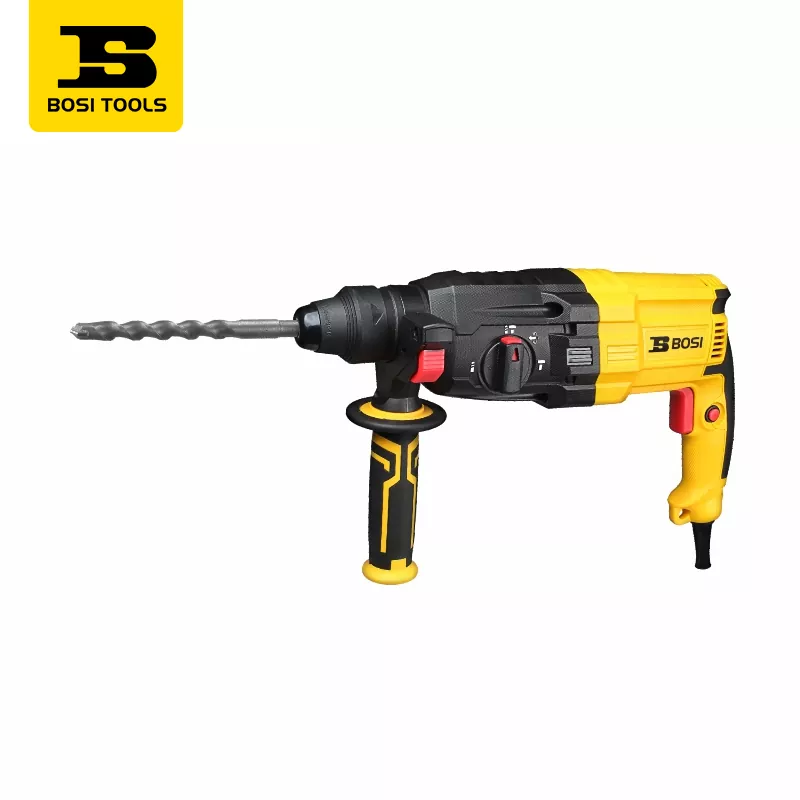

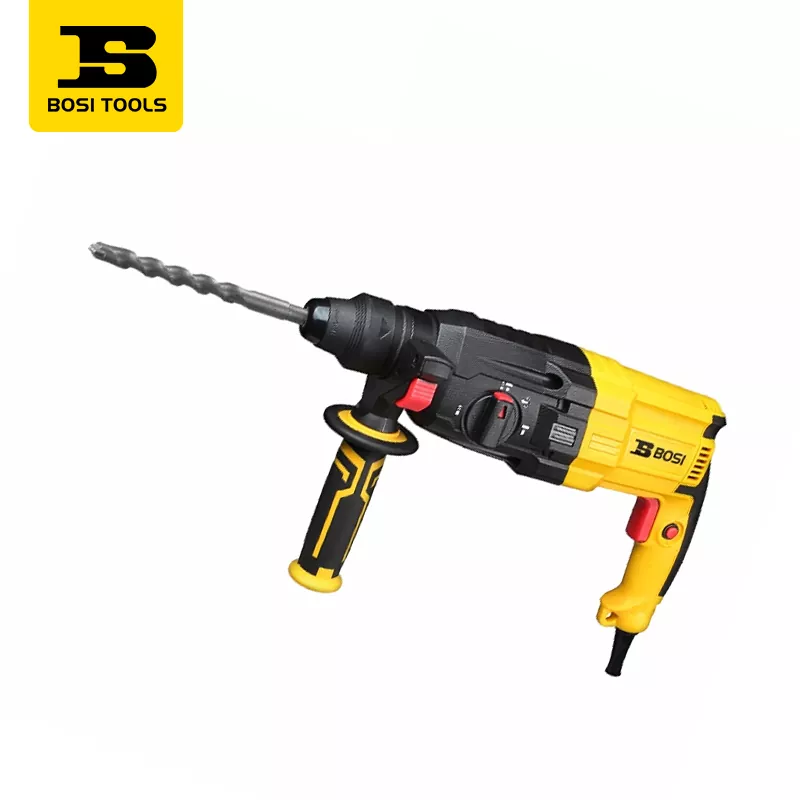

Three-Function Drill Hammer

BOSI's Three-Function Drill Hammer, rated at 900W, with a maximum drilling diameter of 26mm. It uses a high-quality pure copper motor with optimized heat dissipation structure for longer lifespan.

Three-function design (hammer drill, flat drill, single pickaxe) with quick switching: hammer drill mode for concrete drilling; flat drill mode for metal and wood drilling; single pickaxe mode for light demolition such as wall grooving and tile removal. Round shank chuck for versatility. No-load speed of 1150 rpm provides moderate impact force, suitable for home renovation, small projects, and plumbing/electrical installation.

Product Specifications

Product Applications

Concrete Drilling: Used with a round shank drill bit for installing expansion bolts, through-wall pipes, air conditioner brackets, etc.

Wall Grooving: Switch to single-pick mode for chiseling grooves for concealed electrical and plumbing wiring.

Tile Removal: Install a special flat chisel to remove old tiles or floor leveling layers.

Metal/Wood Drilling: In flat drill mode, replace the three-jaw chuck (sold separately) to drill metal and wood.

Lightweight Wall Breaking: Single-pick mode can quickly break materials such as aerated concrete blocks and hollow bricks.

BOSI 3-Function Drill Hammer vs. Standard Drill Hammer: What’s the Difference?

FAQ

Q: How to operate the three-function switch?

A: Rotate the function dial to the corresponding icon: the hammer icon is a hammer drill, the drill icon is a flat drill, and the pick icon is a single pick. Please ensure that the machine is completely stopped before switching.

Q: Are round shank and square shank drill bits interchangeable?

A: Not universal. This machine uses round shank drill bits (SDS standard). If you require square shank drill bits, please select the corresponding model.

Q: Is the impact force sufficient in single-pick mode?

A: The pickaxe mode of a 900W electric hammer is suitable for lightweight concrete, brick walls, and ceramic tiles, but not for reinforced concrete or thick stone slabs. For heavy-duty breaking, please use an electric pickaxe.

Q: How to maintain the Three-Function Drill Hammer?

A: Clean the dust from the ventilation opening after each use; Regularly add lubricating grease to the clamp head; Check the length of the carbon brush and replace it when it has worn down to one-third of its original length.
