Seven Drawer Tool Cart

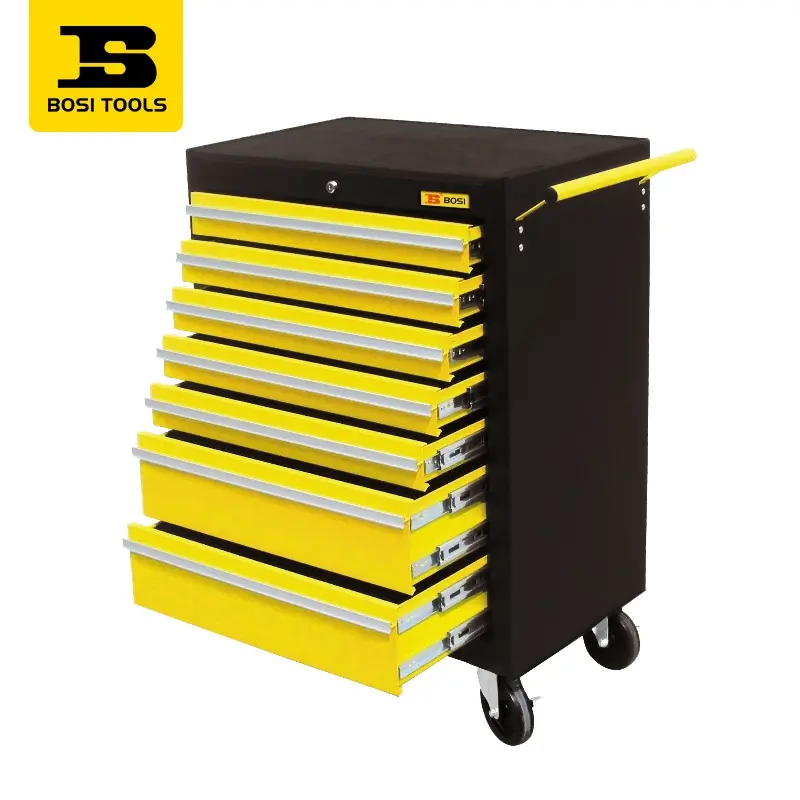

This BOSI supplier's Seven Drawer Tool Cart is made of 1.2mm thick cold-rolled steel plate with a sandblasted finish, providing anti-slip, anti-dissolution, and strong rust resistance. It features high-capacity double-brake casters at the bottom, offering strong locking and smooth operation. The cart measures 680×458×860mm, with each of the seven drawers capable of supporting 35kg, for a total load capacity of 400kg. Suitable for professional environments such as workshops and auto repair shops. One unit is included in the package, with a 12-month warranty (excluding casters). It conforms to standard QB/T4400.

Product Advantages:

Sturdy body: 1.2mm cold-rolled steel plate welded as a whole, resistant to impact and not deformed.

Sandblasted Surface: Anti-slip, anti-dissolving, strong rust prevention, suitable for oily environments.

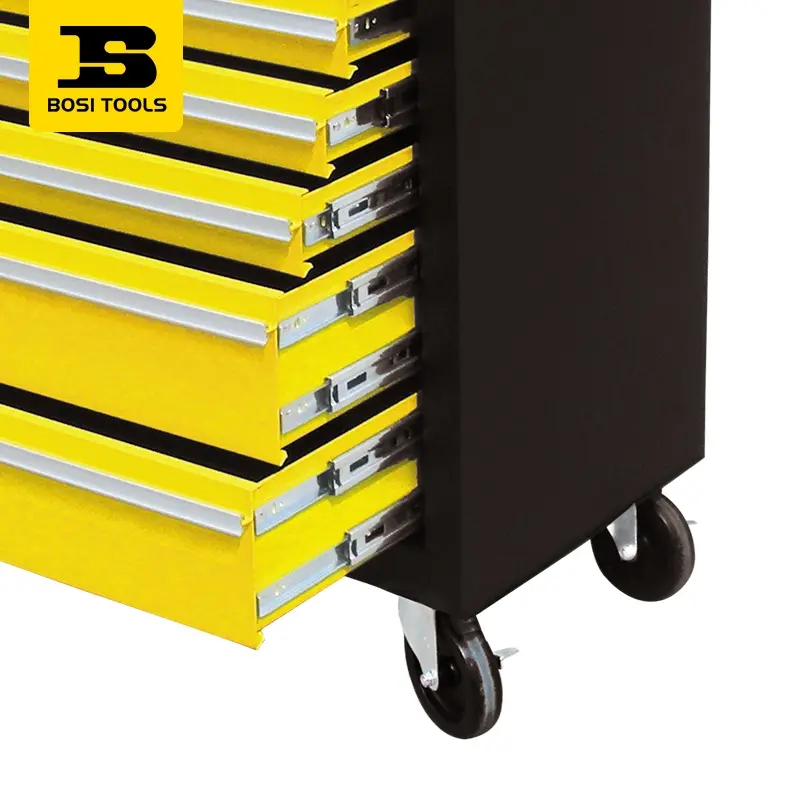

Super Strong Casters: Double brake design, stable after locking, easy to push.

Large capacity drawers: 7 independent drawers, each drawer can bear 35kg, and the total load capacity is 400kg.

Specifications: 680×458×860mm, passed QB/T4400 testing.

Actual Use Cases

In the use of automobile repair chain stores, it is commonly used to store sockets, wrenches, and pneumatic tools at various workstations. The 1.2mm thick vehicle body did not deform during frequent movement, and the sand paint surface is resistant to oil wiping. After the double brake wheels are locked, the technician pushes and pulls the heavy-duty cabinet body without sliding. On average, each car uses the drawer to open and close 200 times per month, and the slide rail remains smooth, improving the cleanliness and efficiency of the workstation.

Packaging and Shipping

Each tool cart is individually packaged in a thickened cardboard box, filled with foam and corner protectors to prevent damage during transportation. Shipped in full cartons, 1 unit per carton. Bulk shipments to ports or designated warehouses are possible. Export wooden frame reinforcement is supported (additional fee required). Product manual and warranty card are included before shipment. For details, please consult customer service for packaging images and logistics solutions.

Product testing items and data

Vehicle strength: When fully loaded with 400kg and left to stand for 24 hours, the frame has no permanent deformation.

Drawer slide rail: With a load of 45kg, it can be pushed and pulled 5000 times without any jamming or abnormal noise.

Durability of casters: When fully loaded for 10 kilometers, the wear on the wheel surface is ≤ 1mm, and the brakes are effective.

Surface coating: Salt spray test for 72 hours, no rust; solvent wiping (engine oil, gasoline) with no peeling.

Standard: Full compliance with QB/T4400.

✓ Total Load Capacity 400 kg ✓ Dual-Brake Design ✓ Subjected to a 72-Hour Salt Spray Test
