D-type Bolt Cutters

The D-type Bolt Cutters produced by manufacturer BOSI are 11 inch in size with a maximum opening of 65mm. The pliers head is forged from high-quality carbon steel, heat-treated, and easy to use with good clamping effect. Implement standard QB/T4265. Suitable for welding fixation, workpiece clamping and other scenarios. Welcome to inquire for samples.

Send Inquiry

Product Description

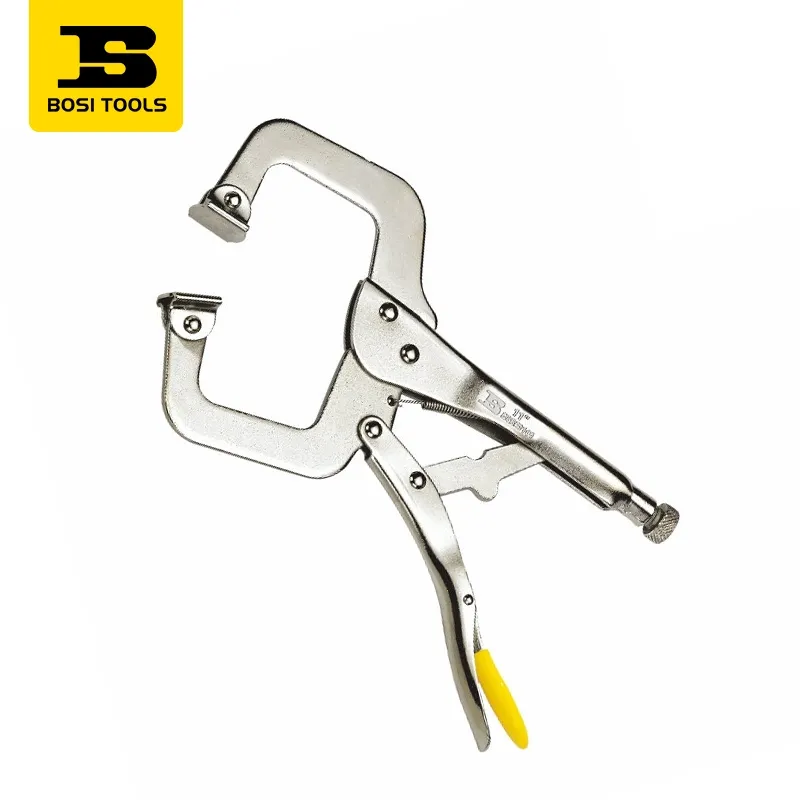

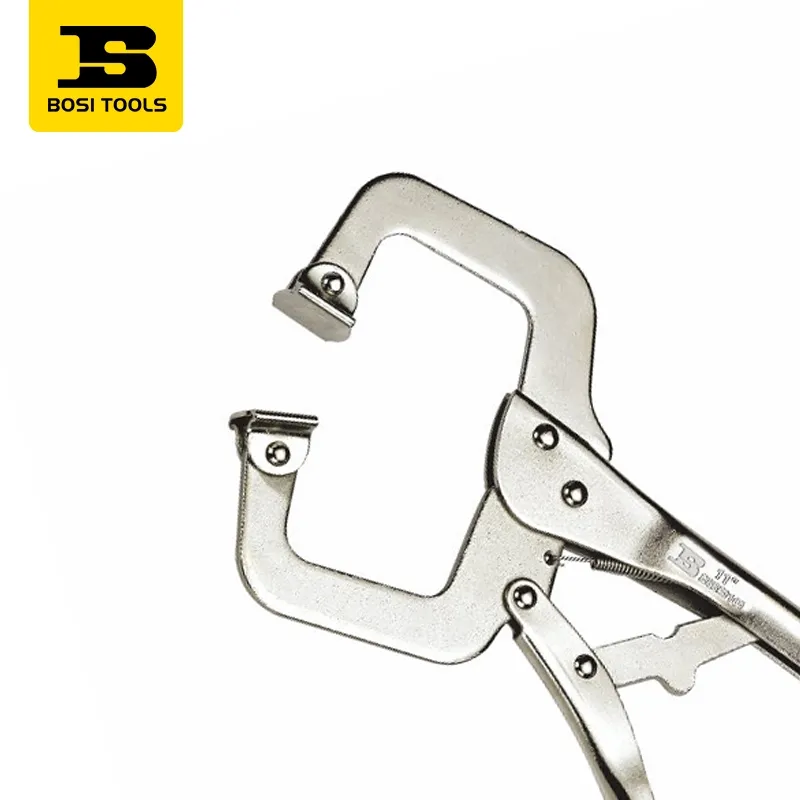

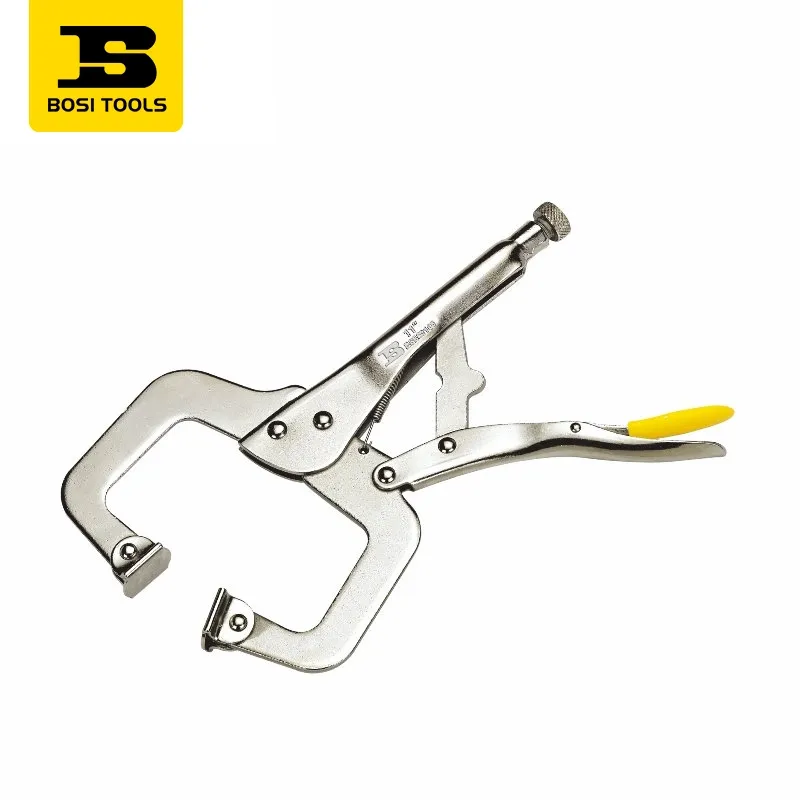

The D-type Bolt Cutters produced by manufacturer BOSI have a specification of 11 inches (275mm). The clamp head is forged from high-quality carbon steel and undergoes heat treatment, providing strong and effortless clamping. The maximum opening can reach 65mm, and the screw can be adjusted to fine tune the clamping force.

After locking, there is no need to continuously apply force to maintain a firm clamping. Dimensions 283 × 135 × 55 × 23mm. Follow standard QB/T4265. Suitable for temporary fastening operations such as welding fixation, metal processing, and automotive maintenance.

Parameter Items	Value
Product Name	Type D-type bolt clamps
Specifications	11"/275mm
External dimensions (L×W1×W2×H)	283×135×55×23mm
Maximum Opening	65mm
Pliers Head Material	High-Quality Carbon Steel Forging
Heat Treatment	Yes
Standard Implemented	QB/T4265
Packing Quantity	6/36PCS

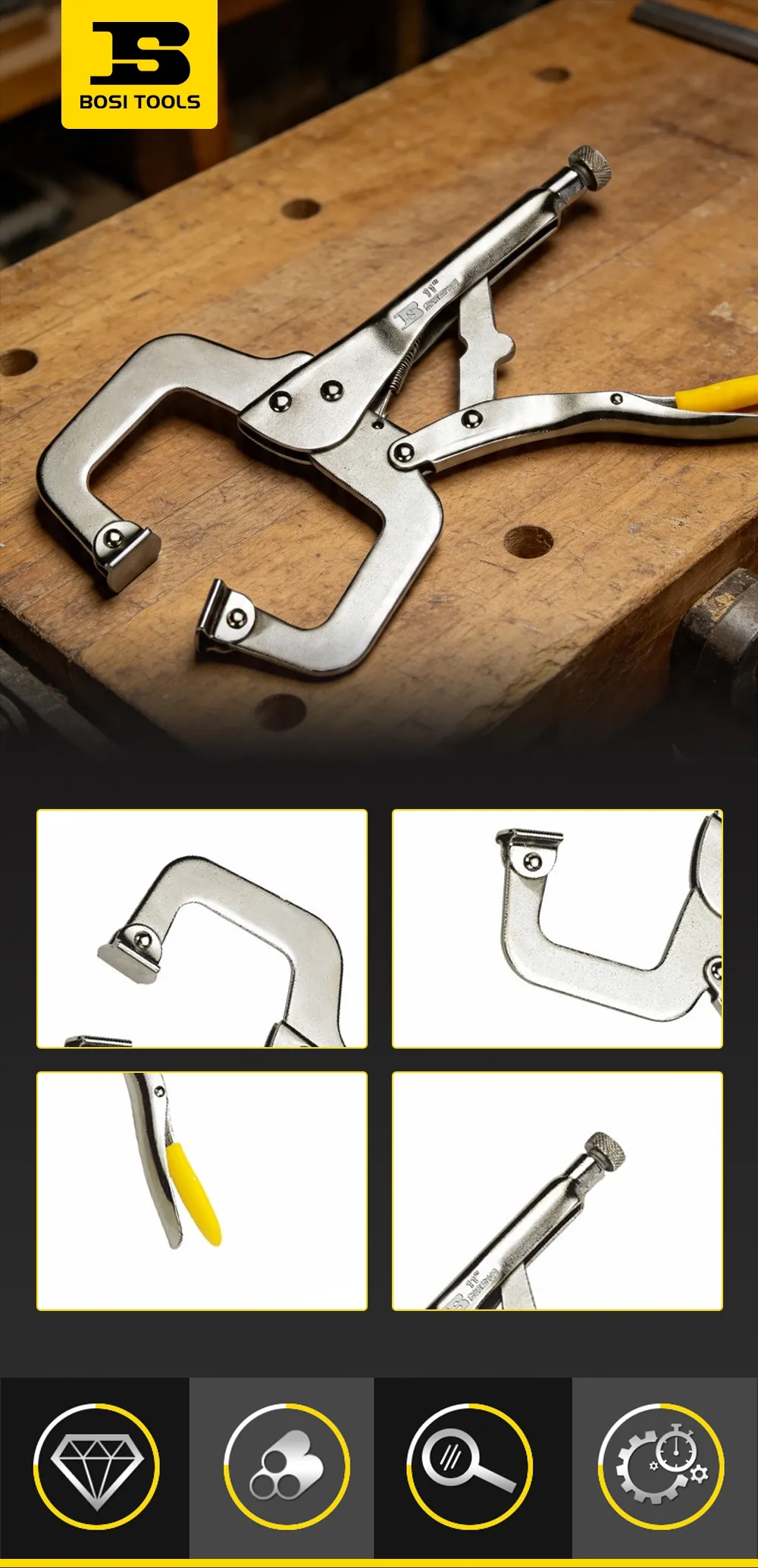

D Type Bolt Cutters

Precautions for Use

Do not exceed the opening range: Maximum opening 65mm. Do not forcibly clamp workpieces exceeding this size to avoid damaging the adjustment mechanism.

Avoid Impact Loads: Pliers are for static clamping. Do not strike the pliers body with a hammer or use them to pry heavy objects.

Regularly Check Adjusting Screws: Before use, ensure that the adjusting screws are tightened to prevent loosening during clamping and causing the workpiece to fall off.

Rust prevention and maintenance: Wipe clean after use, especially the teeth of the pliers. You can apply rust-preventive oil. Store in a dry environment.

Non-insulated tools: Do not use on live equipment.

Comparison Items	Persian Type D-type Bolt Cutters	Common Pliers on the Market
Pliers Head Material	High-Quality Carbon Steel Forging	Ordinary Carbon Steel or Cast Iron
Heat Treatment	Overall Heat Treatment, Uniform Hardness	Partially Without Heat Treatment or Locally Quenched
Maximum Opening	65mm	Usually 50-60mm
Adjustment Mechanism	Precision Screws, Smooth Adjustment	Screws Easily Jammed or Stripped
Standard Implemented	QB/T4265	No Standard or Enterprise Standard
Handle Design	Type D-type labor-saving structure	Ordinary Straight Handle

Comparison Items	Before Use (No Pliers or Ordinary Clamps)	After use (Persian Type D-type bolt clamps)
Clamping Stability	Requires Constant Hand Holding, Easily Loosens	Self-Holding After Locking, Freeing Hands
Clamping Force	Limited Hand Strength, Inability to Clamp Tightly	Adjusting the screw amplifies the clamping force, ensuring a firm and non-slip grip.
Applicable Scenarios	Unable to clamp irregularly shaped or thick workpieces	Maximum opening 65mm, can clamp pipes, square steel, etc.
Work Efficiency	Difficult for one person to complete welding positioning	Quick positioning, doubling welding efficiency
Fatigue Level	Hand soreness from prolonged gripping	No force required after locking, hand comfort is improved
