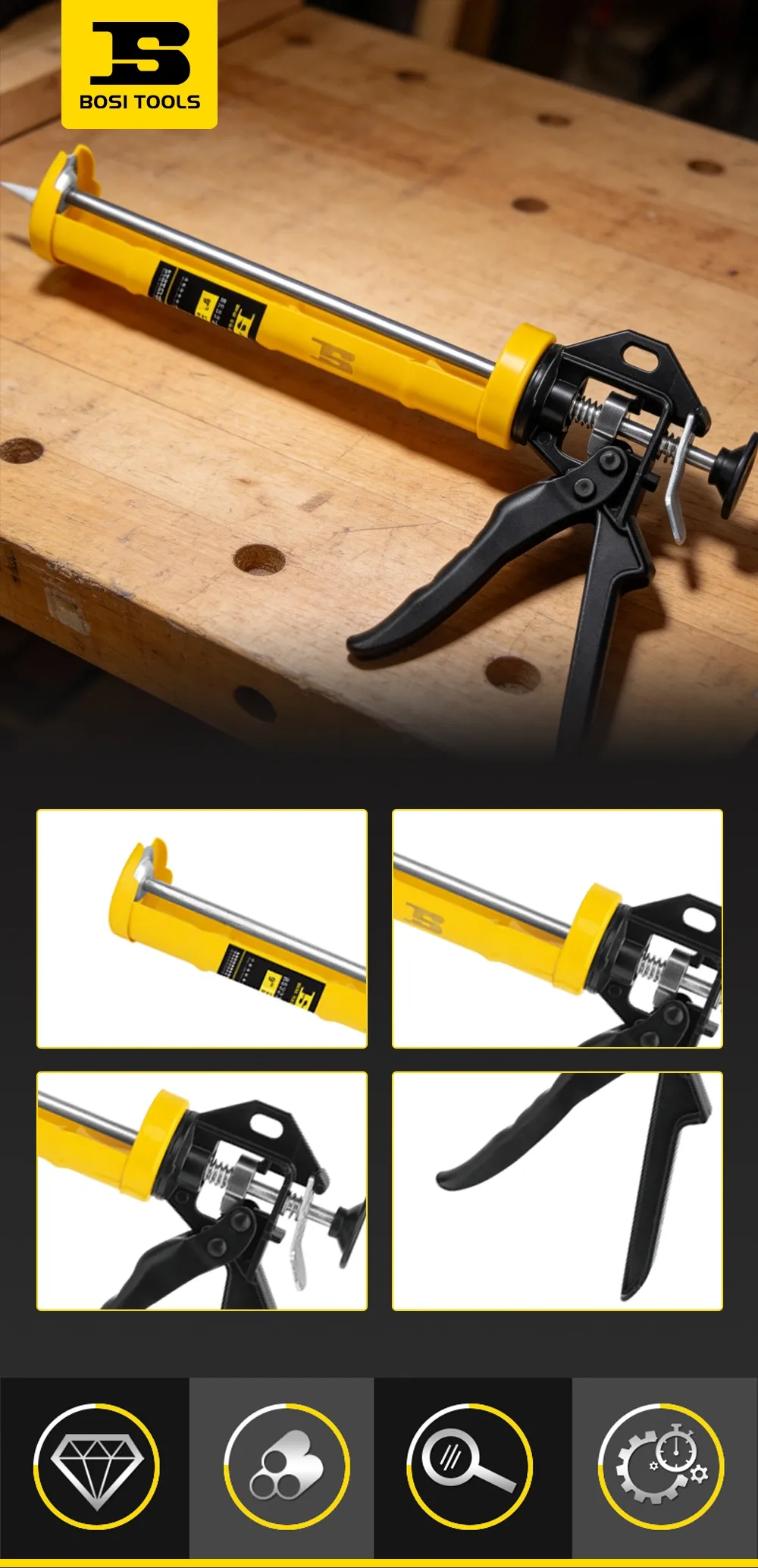

Semi-circular Caulking Gun

BOSI's semi-circular caulking gun is a 9-inch (225mm) model. The gun body is made of 1.0mm thick steel plate, making it sturdy and durable; the handle is made of high-strength die-cast aluminum alloy, making it lightweight and not easily broken; the center moving rod design provides excellent braking and even, controllable glue dispensing; the feed plate is made of powder metallurgy material, which is high-strength and more durable.

Dimensions are 330×195×55mm. It conforms to standard QB/T5943. Suitable for applying cartridge adhesives such as glass glue, sealant, and structural adhesive, it is widely used in building decoration, door and window installation, and bathroom and kitchen appliance sealing.

Product Parameter

Product Application

Building Decoration: Used for sealing the gaps between door and window frames and walls to prevent air leakage and water seepage; also used for filling tile grout.

Bathroom Installation: Sealing the joints between toilet bases, sinks, and walls with silicone sealant for waterproofing and mildew prevention.

Glass Curtain Walls: Applying structural adhesive between the frame and glass to ensure a strong and sealed bond.

Automotive Repair: Sealing the joints of body panel joints and fixing the sealing strips during windshield installation.

Industrial Manufacturing: Applying adhesive to the sealing strips of electrical appliance housings and cabinets, and sealing filters and duct interfaces.

Home DIY: Glue application for sink edges, baseboard sealing, and model making.

Sales and Service

BOSI provides specialized services for customers in the building decoration and industrial sealing industries: For engineering companies, annual supply agreements can be signed to guarantee stable prices and priority delivery.

After-sales service includes a 12-month warranty on the gun body and handle (under normal use). Please consult customer service for details.

FAQ

Q: The push plate slips and cannot push the glue?

A: The feed plate is worn or there is a hard lump at the rear of the hose. Remove the feed plate to check the teeth; replace it if severely worn; replace the hose if it is deformed.

Q: The handle is pressed down but no glue comes out?

A: Check if the hose tip has been cut open; if the nozzle is clogged; if the glue inside the hose has hardened. It could also be that the feed plate is not in contact with the hose tail; try pressing it several times to tighten the feed plate.

Q: Glue gun leaks glue or the glue comes out unevenly?

A: Check if the hose fits tightly with the gun body; if the center moving rod is bent; if the brake pad is faulty. Adjust the moving rod stroke to ensure consistent glue dispensing with each press.

Q: Will the aluminum alloy handle break?

A: The high-strength die-cast aluminum handle will not break under normal use. Avoid hammering or overloading. If there are cracks, it is a manufacturing defect and can be replaced free of charge.

Q: How to extend the life of the glue gun?

A: Clean residual glue from the gun body promptly after use; regularly apply lubricating oil to the moving rod and pivot; do not store the glue gun under heavy objects.
